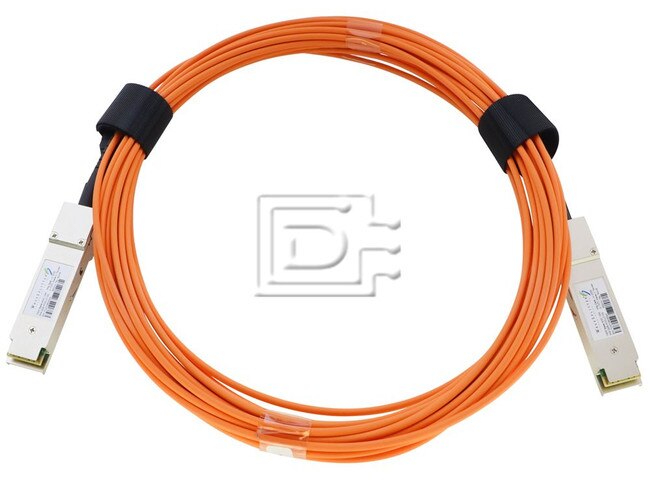

WaveSplitter WS-Q28-AOCLC102 / WS-Q28-AOCLC103 100Gbps QSFP28 10M / 33FT Active Ethernet Optical Cable – Brand New
WaveSplitter WS-Q28-AOCLC102 / WS-Q28-AOCLC103 100Gbps QSFP28 10M / 33FT Active Ethernet Optical Cable – Brand New
Quad Small Form-Factor Pluggable 28 (QSFP28) active optical cables (AOC) are high- performance active optical cable with bi-directional signal transmission and aggregate 100-Gbps bandwidth for both InfiniBand EDR and Ethernet 100G-SR4 applications. Compared to conventional copper cables, longer and lighter optical cables enable the ease of complicated data-center cablings. The AOCs utilize multimode fiber with 850-nm VCSELs and PIN PDs. The certificated cables have superior signal integrity and biterror-rate, which enables reliable operation performance.
Compliant with 100GBASE-SR4 and CAUI-4 specification per IEEE 802.3bm
Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
Supports 100 Gbps data rate links up to 30m/70m/100 m via OM2/OM3/OM4
Power consumption of max 2.5W
Hot pluggable electrical interface
Using standard 12/8 lane optical fiber with 3-mm round cable
0 to 70?C case temperature operating range
RoHS Compliant (lead-free)
Applications:
Ethernet for 100GBASE-SR4
InfiniBand EDR, FDR, & QDR
HPC Interconnects
Proprietary Interconnections
